Description
The Ultimate All-in-One: Wash and Fill in One Station

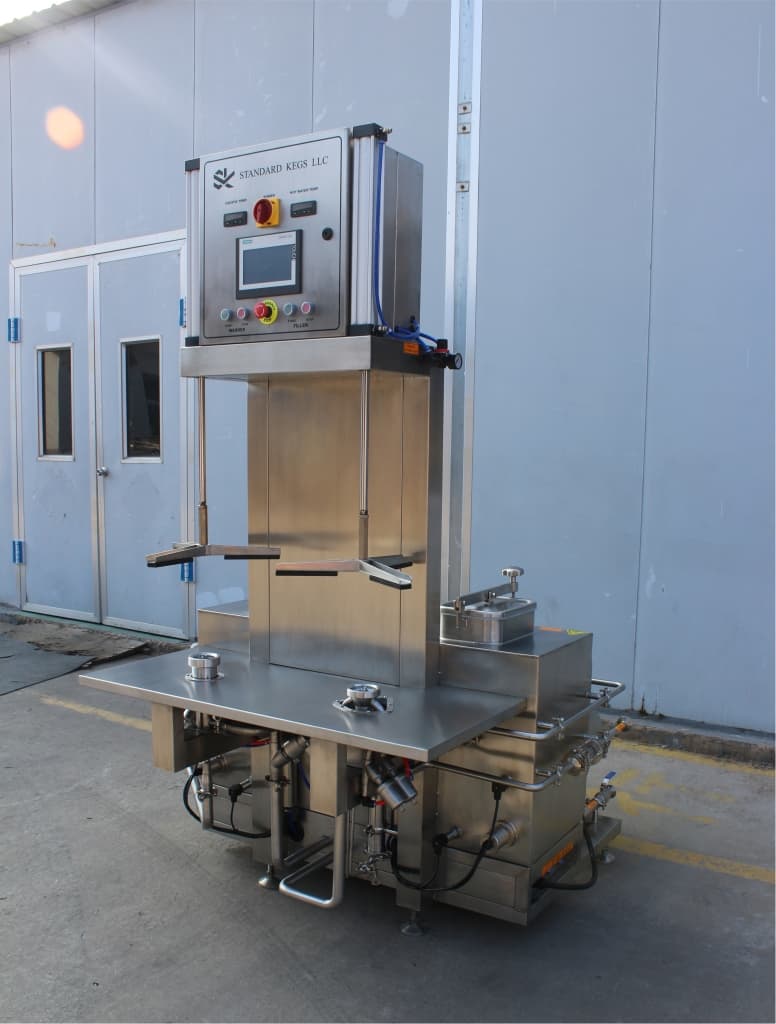

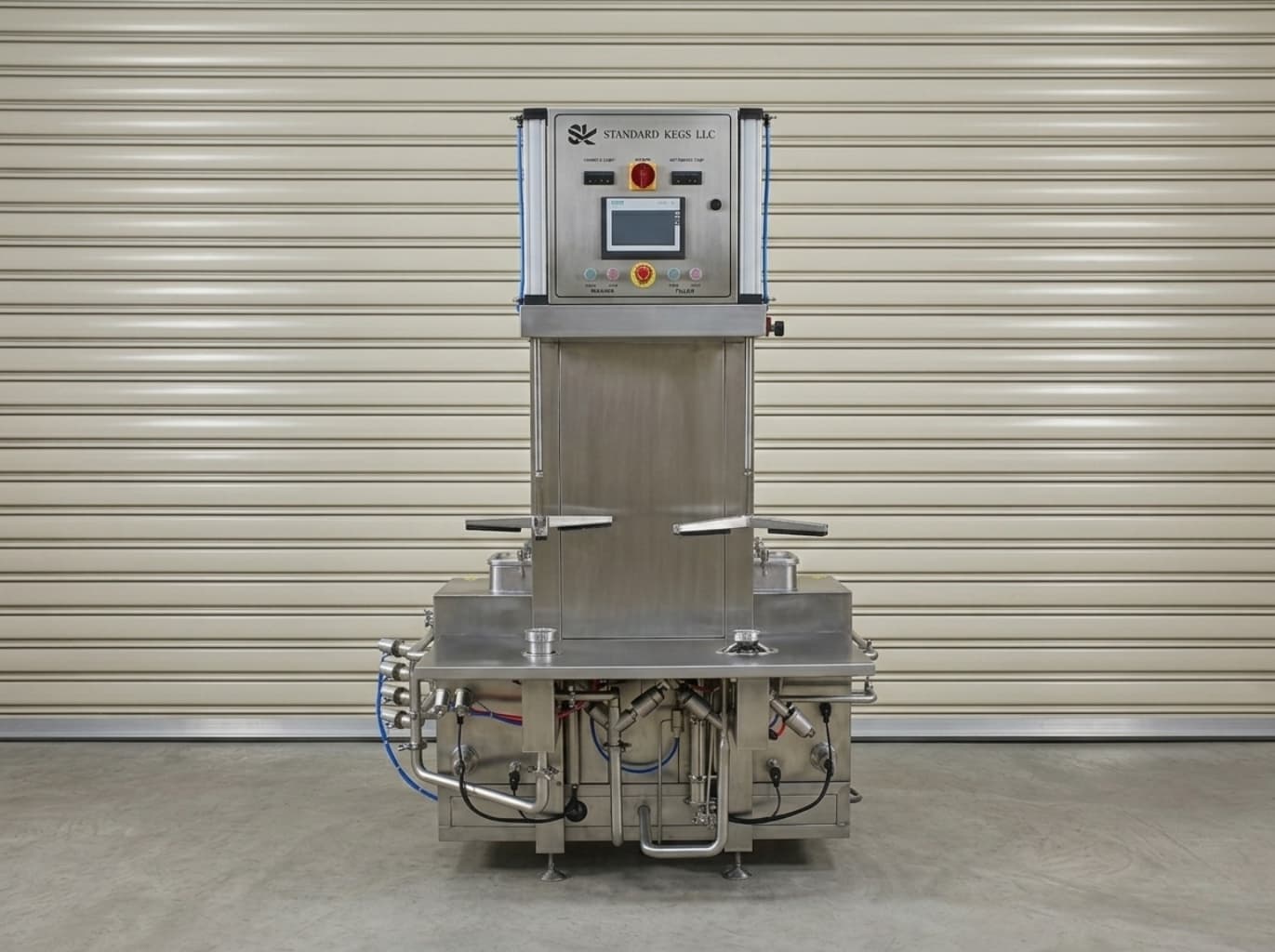

The SKE101 is more than just a cleaner; it is a high-precision Dual Head Keg Washer & Filler designed to handle your entire kegging process in a single footprint. This system is the ideal choice for breweries looking for a complete end-to-end solution, allowing you to transition seamlessly from a rigorous 12-step cleaning cycle to a precision CO2 back-pressure filling procedure.
Equipped with a Siemens PLC 1200 and two 26-gallon (100L) reservoirs, the SKE101 ensures every keg is purged, sanitized, and filled with industrial accuracy. By combining both functions into one machine, you reduce handling time, minimize the risk of contamination, and streamline your entire cellar workflow.
Features
- Dual-Functionality: Integrated Washer and Filler capabilities in one unit.
- Precision Filling: Dedicated filling procedure including CO2 back-pressure and automated stop.

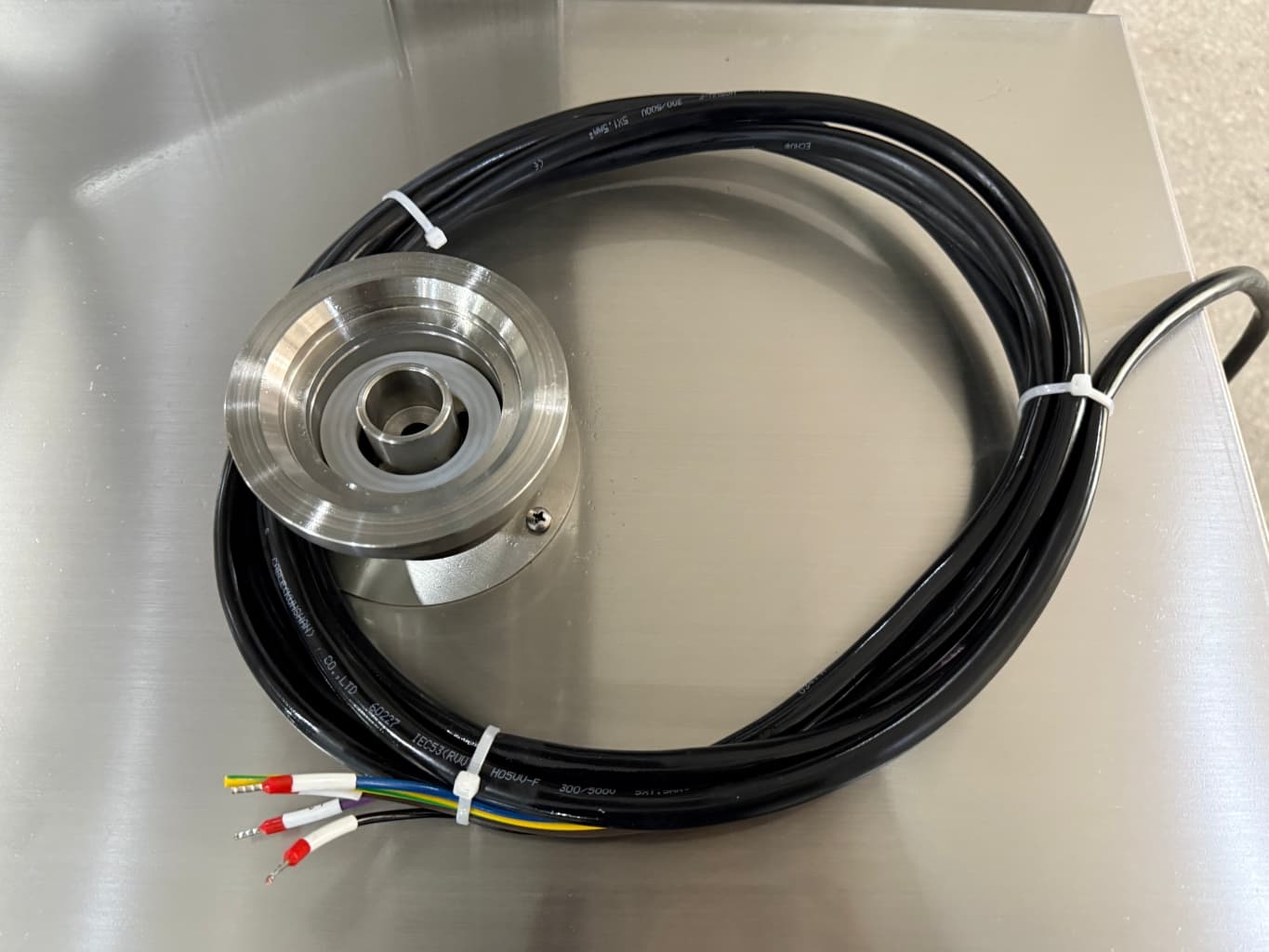

- Standard Residual Liquid Detection: Built-in sensors ensure every keg is empty and ready for caustic before the cycle begins.
- Advanced Control: Powered by a Siemens PLC 1200 with an intuitive touch-screen interface for granular cycle management.
- Efficient Throughput: Processes 20–40 kegs per hour from start to finish.
- Industrial Build: Features two dedicated pumps and high-grade UL-listed components.
- Versatile compatibility: Optimized for American Sankey (D-Type) keg sizes.
Dimensions
- Unit Dimensions: 48″ W x 60″ L x 81″ H
- Gross Weight: 530 lbs (optimized for easier floor placement)
- Liquid Tank Volume: 2 x 100L (26 Gallons each)
Hook Ups
- Electrical: 200-240V / 3 Phase / 60Hz (14kW total power)
- Heating: 6kW Electric (integrated into the caustic tank)

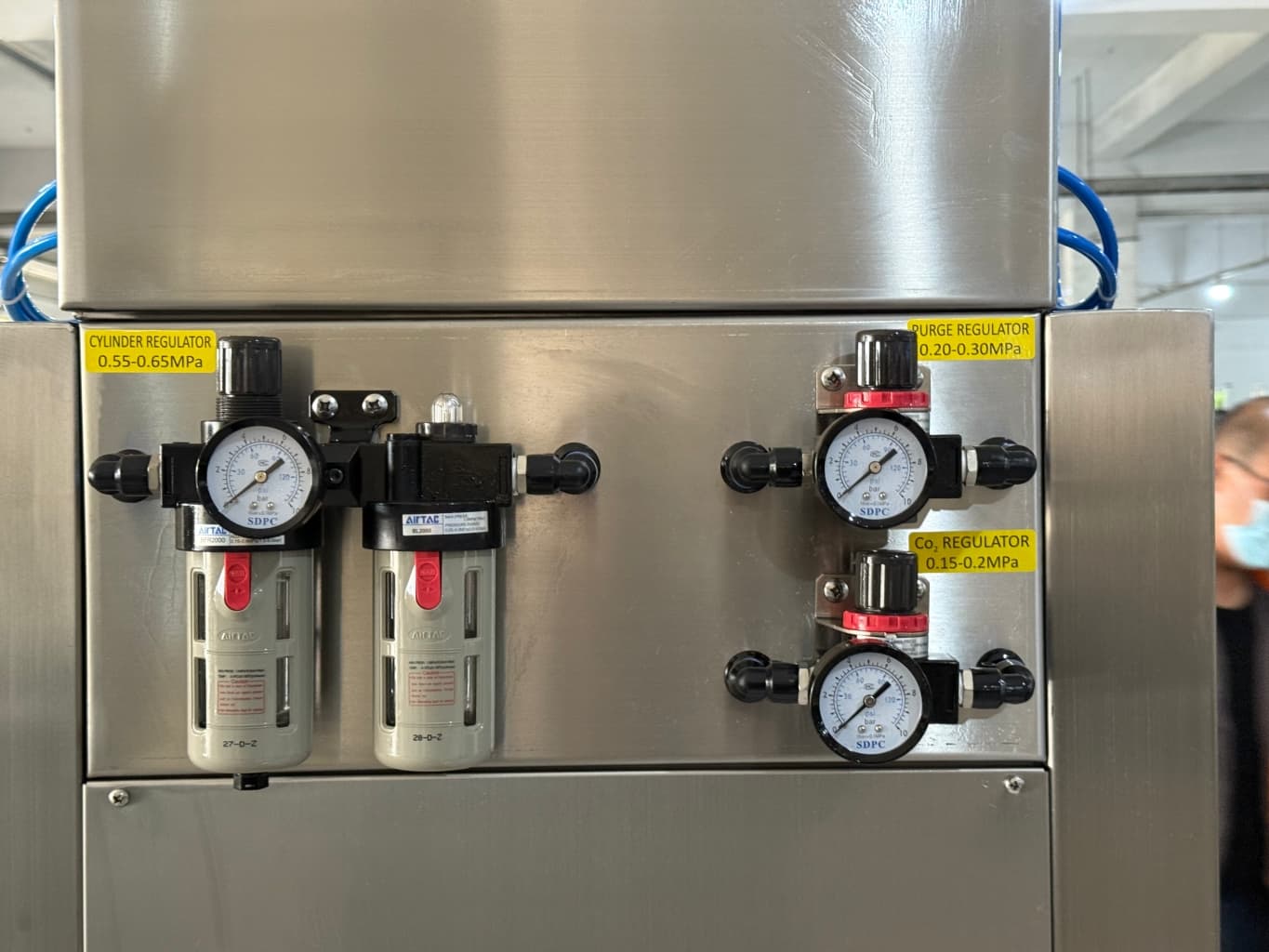

- Compressed Air: Required for pneumatic operations and purging
- CO2: Required for back-pressure and the integrated filling cycle
- Water: Hot and cold water connections from an external source
